Takagi Seiko Slit Lamp - Model SM-70N - Gallilean Type • Complete for table top mounting with headrest and transformer • A Gallilean type microscope with a wide range of magnifi…
Add it to a quote and we will confirm the lead time.
Takagi Seiko Slit Lamp - Model SM-70N - Gallilean Type • Complete for table top mounting with headrest and transformer • A Gallilean type microscope with a wide range of magnifi…

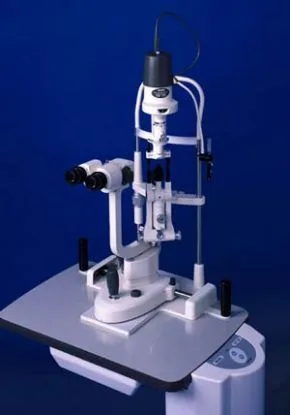

Takagi Seiko Slit Lamp - Model SM-70N - Gallilean Type • Complete for table top mounting with headrest and transformer • A Gallilean type microscope with a wide range of magnifications • High quality, multicoated lens • 5 step drum type magnification changer • Light booster button also serves as a trigger for image capture when suitable device is fitted • LED navigation for focussing on patient's individual eyes • Reflecting mirror has been specially coated to reduce harmful infrared and UV light • Sturdy and stable chin rest. Specifications: • Type: Gallilean type converging binocular microscope • Magnifications: 6.3x, 10x, 16x, 25.6x, 40x • Interpupillary adjustment: 52mm to 82mm • Slit width: 0 - 10mm continuously variable • Slit length: 1 - 10mm continuously variable • Apperture Diaphragms: 10mm, 5mm, 3mm, 2mm, 1mm and 0.2mm • Lamp: 12v 30w halogen bulb • Power consumption: 40VA • Base size: 359mm x 328.5mm • Weight: 13.3kg.
